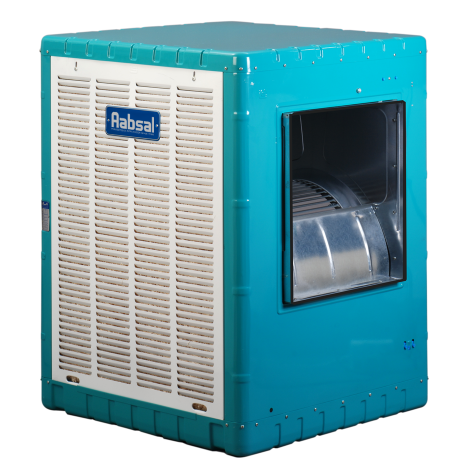

Rooftop Evaporative Cooler Model AC70

Attributes

  • Dimensions (mm) : 1150-870-870 (Length-Height-Depth)
  • Weight (kg) : 83.5
  • Air deivery (cfm-M3/h) : 4900-8350
Available

Rooftop Evaporative Cooler Model AC70

Rooftop Evaporative Cooler
Description

  • Frame made of galvanised steel sheet
  • Equipped with straw cooler pads with equal thickness

Product Overview

1 1 1 1
1 1 1 1



Technical Specifications

Specifications

  • Dimensions (mm)
    1150-870-870 (Length-Height-Depth)
  • Weight (kg)
    83.5
  • Air deivery (cfm-M3/h)
    4900-8350
  • Power usage (w)
    890
  • Cooling output in m3 under normal operation circumstances
    380
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    45

Motor Specification

  • Power
    HP 3/4
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
