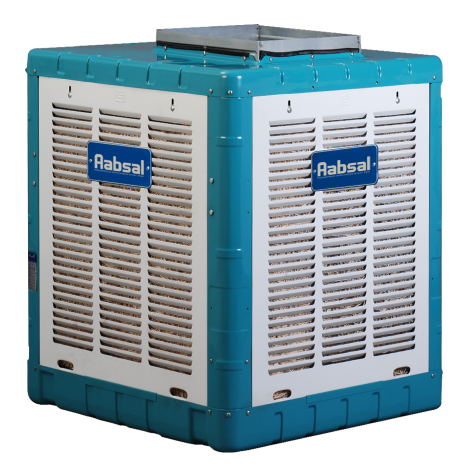

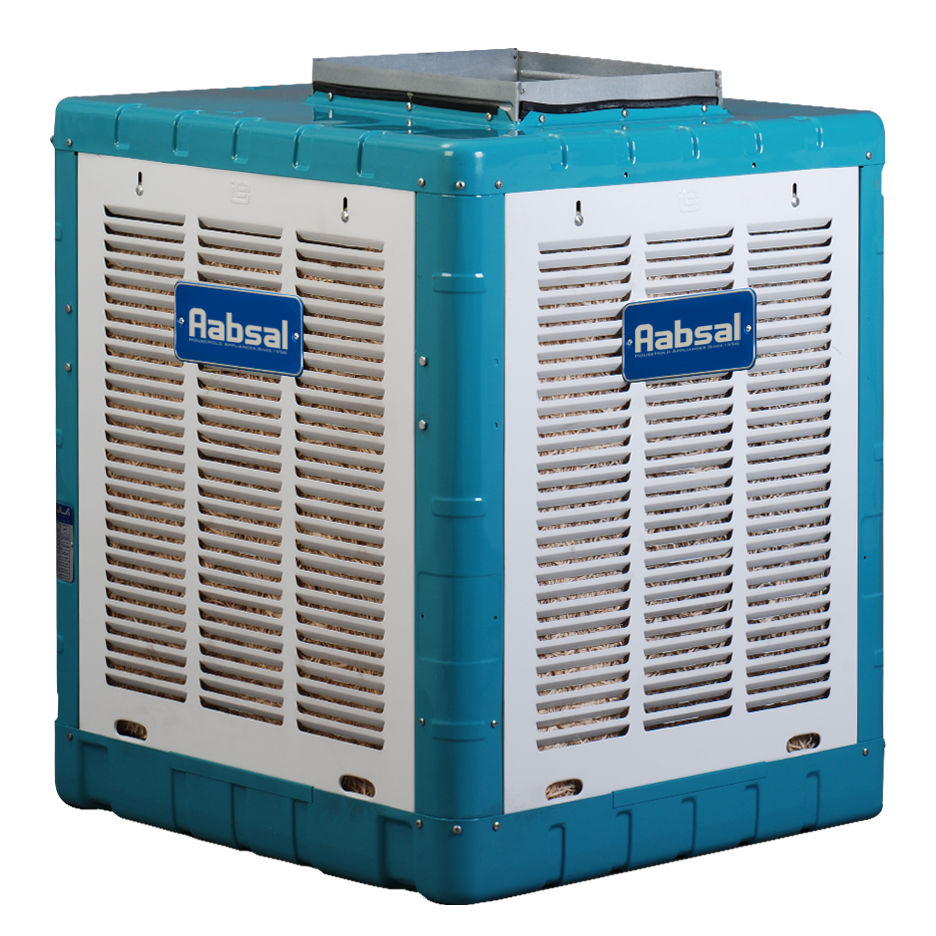

Top Discharge Evaporative Cooler Model AC38

Attributes

  • Dimensions (mm) : 850-730-730 (Length-Height-Depth)
  • Weight (kg) : 51
  • Air deivery (cfm-M3/h) : 2300-3900
Available
Description

Equipped with a safety key
 It has four mesh bodies and thus increases the cooling efficiency
 Designed for places with the entrance of the cooler channel through the window or balcony
 Save the channel
 Occupying less space due to the location of the outlet in the roof of the cooler
 Easy installation and service
 Integrated propeller, without vibration and noise, balanced with fully automatic devices, making the bearing and cooler last longer
 The body and metal parts are made of high-quality galvanized sheet with a thick coating of electrostatic powder paint
 Motor protection shield to prevent water from spilling on it and possible burning
 Accurate water supply system and uniform distribution of water on the shelves as a result:
Increasing the cooling efficiency of the cooler
Preventing water from spilling on the electric motor and burning it



 The possibility of using an electronic key

Product Overview

IRAN CODE

GTIN CODE

PRODUCT - ID

MODEL

1151120083430006 6260834300057 2901201000463 AC38





Technical Specifications

Specifications

  • Dimensions (mm)
    850-730-730 (Length-Height-Depth)
  • Weight (kg)
    51
  • Air deivery (cfm-M3/h)
    2300-3900
  • Power usage (w)
    460
  • Cooling output in m3 under normal operation circumstances
    180
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    25

Motor Specification

  • Power
    1/3 HP
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
