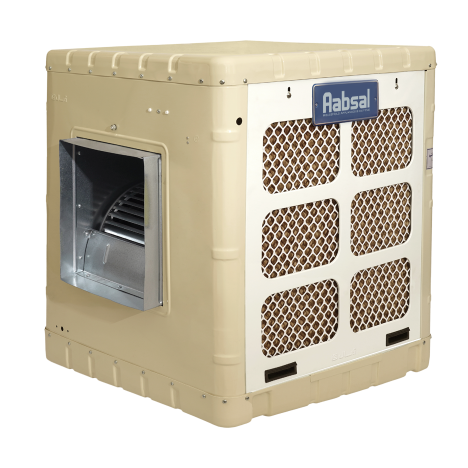

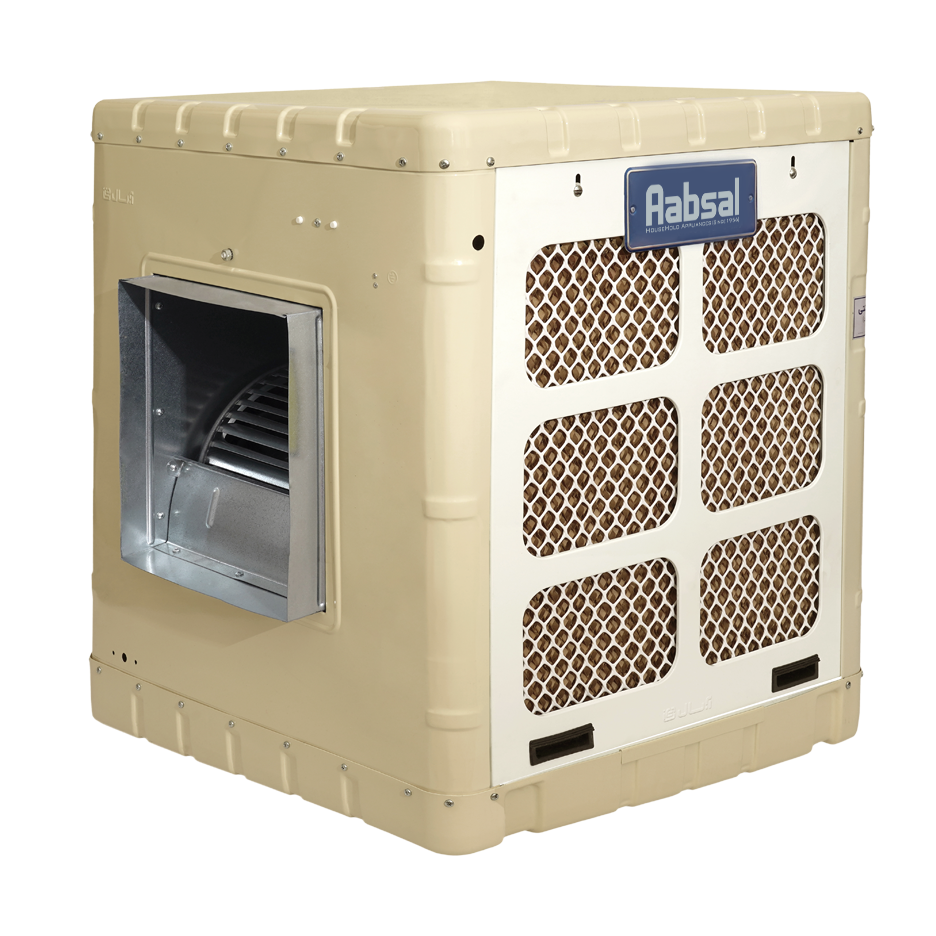

Roof top Evaporative Cooler with cellulose pads Model AC/CP35

Attributes

  • Dimensions (mm) : 850-730-730 (Length-Height-Depth)
  • Weight (kg) : 46/800
  • Air deivery (cfm-M3/h) : 3910-2300
Available
Description

It has a cellulose pad, the use of high-quality and first-class materials in the manufacture of pads, in addition to increasing the quality, also increases its lifespan.
 The use of high-quality and standard galvanized sheets that increases the life of the cooler.
 The basic and correct coating of high-quality powder paints is done to prevent premature corrosion and rust.
 Equipped with a safety key



 Equipped with high efficiency motor

Product Overview

Roof top Evaporative Cooler with cellulose pads

Technical Specifications

Specifications

  • Dimensions (mm)
    850-730-730 (Length-Height-Depth)
  • Weight (kg)
    46/800
  • Air deivery (cfm-M3/h)
    3910-2300
  • Power usage (w)
    460
  • Cooling output in m3 under normal operation circumstances
    180
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    24

Motor Specification

  • Power
    1/3
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Frequency (Hz)
    50
