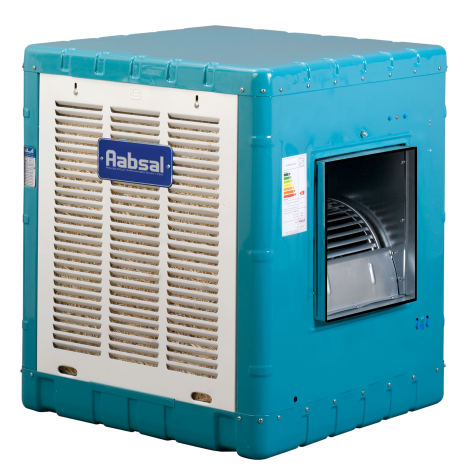

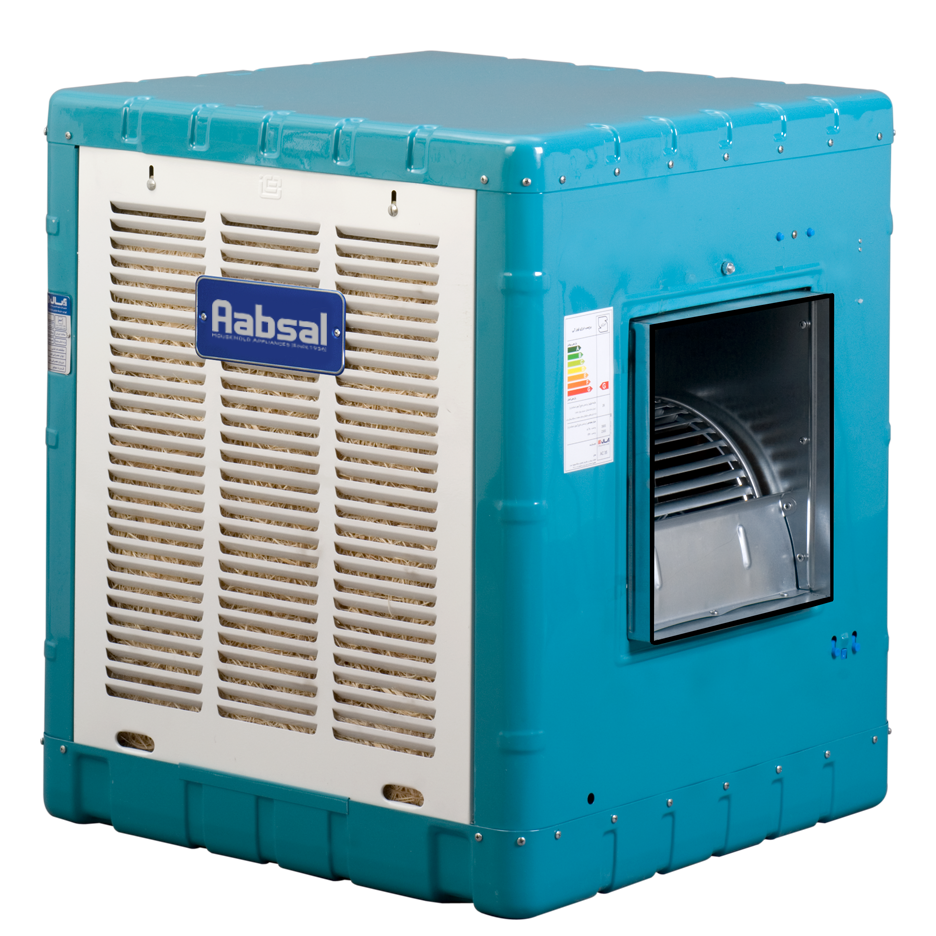

Rooftop Evaporative Cooler Model AC35

Attributes

  • Dimensions (mm) : 850-730-730 (Length-Height-Depth)
  • Weight (kg) : 48.5
  • Air deivery (cfm-M3/h) : 2300-3900
Available
Description

Equipped with a safety key
Integrated propeller, without vibration and noise, balanced with fully automatic devices, making the bearing and cooler last longer
The body and metal parts are made of high-quality galvanized sheet with a thick coating of electrostatic powder paint
Accurate water supply system and uniform distribution of water on the shelves as a result:
Increasing the cooling efficiency of the cooler
Preventing water from spilling on the electric motor and burning it
The possibility of using an electronic key

Product Overview

IRAN CODE

GTIN CODE

PRODUCT - ID

MODEL

1151120083430052 6260834300002 2901201000357 AC35



Technical Specifications

Specifications

  • Dimensions (mm)
    850-730-730 (Length-Height-Depth)
  • Weight (kg)
    48.5
  • Air deivery (cfm-M3/h)
    2300-3900
  • Power usage (w)
    460
  • Cooling output in m3 under normal operation circumstances
    180
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    24

Motor Specification

  • Power
    1/3 HP
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
