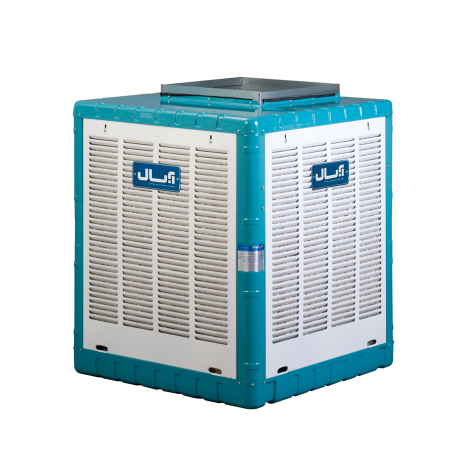

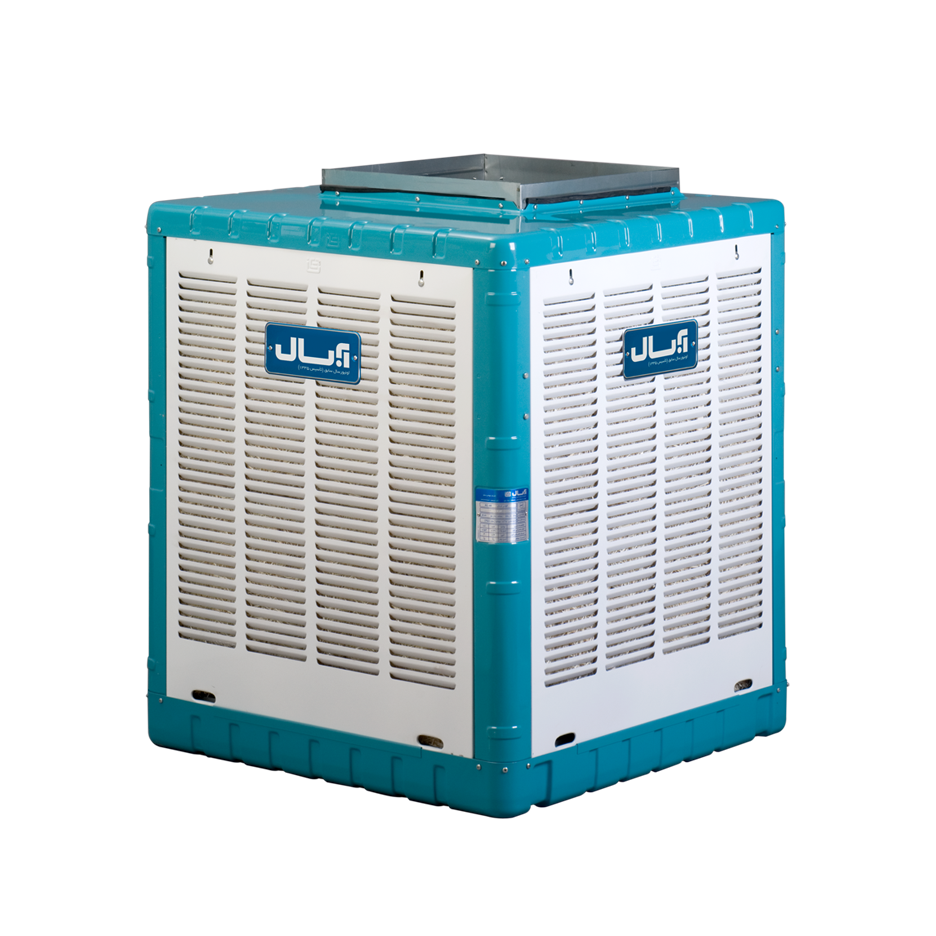

Top Discharge Evaporative Cooler Model AC48

Attributes

  • Energy Efficiency : C
  • Dimensions (mm) : 1000-870-870 (Length-Height-Depth)
  • Weight (kg) : 67
Available

Top Discharge Evaporative Cooler Model AC48

Top Discharge Evaporative Cooler
Description

  • With one extra grill panel cooling efficiency is increased
  • Frame made of galvanised steel sheet
  • Equipped with straw cooler pads with equal thickness

Product Overview

IRAN CODE

GTIN CODE

PRODUCT - ID

MODEL
1151120083430007 6260834300064 2901201000456 AC48



Technical Specifications

Specifications

  • Energy Efficiency
    C
  • Dimensions (mm)
    1000-870-870 (Length-Height-Depth)
  • Weight (kg)
    67
  • Air deivery (cfm-M3/h)
    5300-3120
  • Power usage (w)
    500
  • Cooling output in m3 under normal operation circumstances
    270
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    34

Motor Specification

  • Power
    1/3 HP
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
