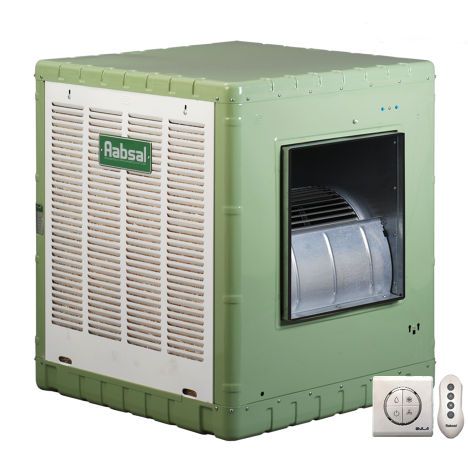

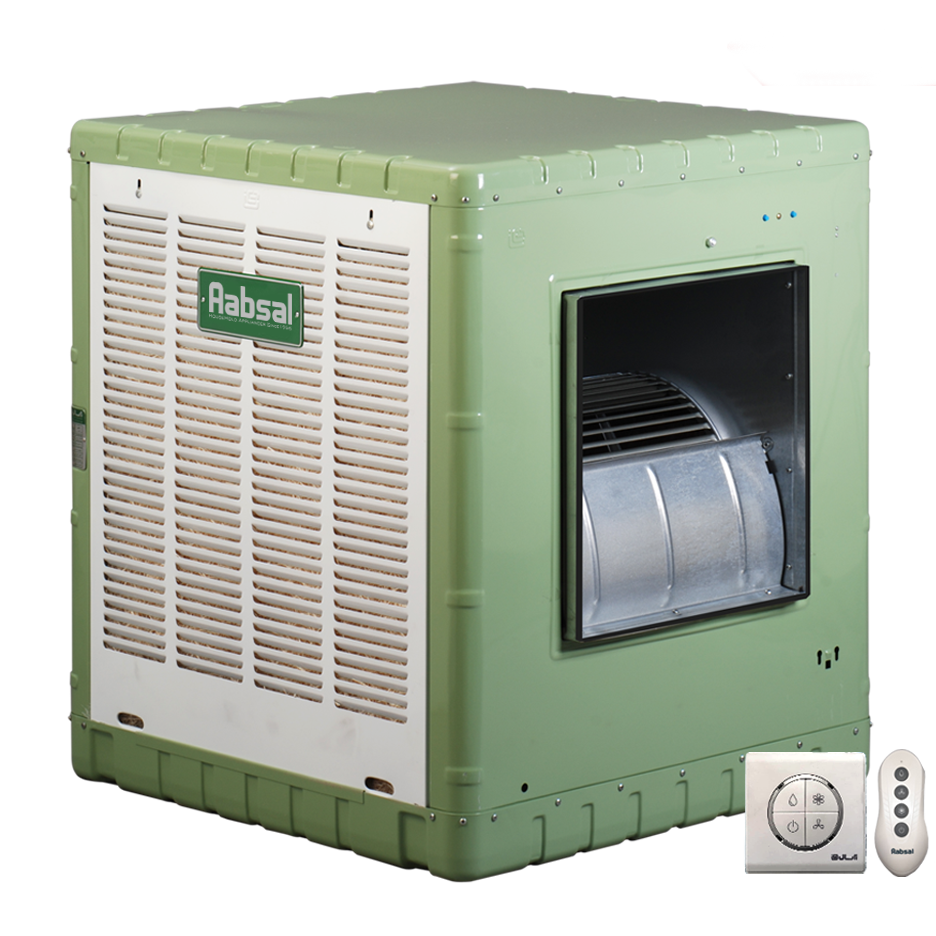

Rooftop Evaporative Cooler Model AC55R

Attributes

  • Energy Efficiency : D
  • Dimensions (mm) : 1000-870-870 (Length-Height-Depth)
  • Weight (kg) : 68.5
Available
Description

Equipped with a safety key

 With electronic key and remote control
 Integrated propeller, without vibration and noise, balanced with fully automatic devices, making the bearing and cooler last longer
 The body and metal parts are made of high-quality galvanized sheet with a thick coating of electrostatic powder paint
 Accurate water supply system and uniform distribution of water on the shelves as a result:
1: Increasing the cooling efficiency of the cooler
2: Preventing water from spilling on the electric motor and burning it

Product Overview

IRAN CODE

GTIN CODE

PRODUCT-ID

MODEL

1151120083430048 6260834301450 2901201000395 AC55R



Technical Specifications

Specifications

  • Energy Efficiency
    D
  • Dimensions (mm)
    1000-870-870 (Length-Height-Depth)
  • Weight (kg)
    68.5
  • Air deivery (cfm-M3/h)
    5900-3470
  • Power usage (w)
    600
  • Cooling output in m3 under normal operation circumstances
    320
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    36

Motor Specification

  • Power
    1/2 HP
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
